ABB New BSD Series A complete range

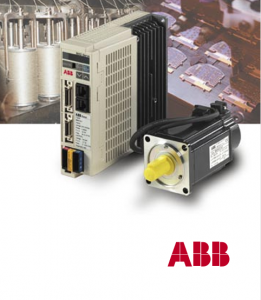

ABB Sace S.p.A. presents its new BSD servo system, a

compact, high-performance and easy product.

The BSD servo drive meets the needs of engineers, loo

king for high-performance, easy and reliable products, and

buyers, who have lower and lower budgets to make their

products competitive in today’s selective market.

ABB: A “made in Europe” brand, worldwide identified as a

synonymous of reliability, quality and security.   New BSD

servo system by ABB Sace: the perfect partner for any of

your application needs.

• Range from 100 watt to 2 Kw

• Supply: 220 Vac

• Compact servo system and high performances

• Analog speed command +/- 10 Volt

• Analog torque command +/- 10 Volt

• Pulse train command up to 1 Mhz

• Serial encoders from 131.072 pulses/turn (standard)

• Anti-vibration filter (patent pending)

• Auto-tuning

• Automatic off-set adjustment

• Notch filters

• Configurable simulated encoder output

•  Software windows: BSD Configurator.

reliable and easy to use; guaranteed by ABB.

New serial encoders from

131.072 pulses/turn (standard)

Maximum accuracy, high perfor

mances and rotation linearity even at

minimum speed.

Anti-vibration filter

A complex algorithm (patent pen

ding) which reduces vibrations to

the minimum.

Autotuning

Easy and automatic tuning of

the drive. A piece of cake!

Integrated brake chopper

Encoder from 131,072 pulses/turn:

great accuracy

Encoder at 8192 pulses

10 r/min

Encoder at 131,072 pulses

10 r/min

10 ms

BSD Configurator

Easy and straightforward sof

tware for servo drive control with

digitizing oscilloscope function.

Special input for torque

control

To make electric screwdrivers,

unwinders, test machines, etc.

• Jog Function through keyboard: useful to test the wiring

and mechanical coupling

• Notch filter for the elimination of resonances.

• Side by side mounting: no mandatory space between the

drives (size1)

• Possible pulse train command: technology shift from

step-by-step to brushless motor

• Power and electronic supplies are separated

•  Compliant with CE, UL, cUL and Rhos
