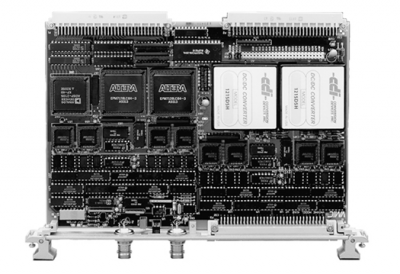

VME-4140 32-Channel 12-bit Analog Output Board

32 analog output channels

10mA maximum output current per channel

One 12-bit D/A converter (DAC) per output channel

0.8Ω output impedance

Random update (nonscanning)

Software or external synchronous update of double-buffered outputs

Single reference potentiometer – no other manual calibration required

Automatic calibration initiated by reset or by software command

Unipolar (0 to +10 V, 0 to +5 V, 0 to +2.5V) or bipolar (±2.5. ±5. ±10 V) software selectable

Discrete wire or mass-terminated cables

Self-test

Extensive onboard diagnostic testing capability

Outputs can be disconnected from the field for offline

PMC expansion slots

Self-testing

Front panel status LED

Front panel analog output connector

Front panel reference voltage access

Specifications

Channel Voltage Ranges

0-5V, 0-10V, ±2.5V, ±5V, ±10V

Channels

32

Form Factor

VME

Function

12-bit DAC

Throughput

10 mS
