Abaco TM-683 2 PMC rear panel I/O transition module for 6U CPCI

Overview

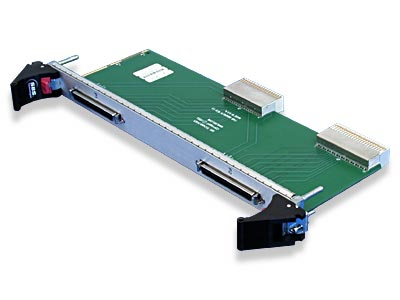

TM-683 is a transition module providing flexible access for the 128 lines of rear-panel I/O for our 6U CompactPCI carrier cards. Each of the two sets of 64 I/O lines is brought out to an individual high-density SCSI3-style 68-pin female connector allowing for individual connection to each module. This transition module contains no active components. It is compatible with CP-613. CP-620-5V, CP-630 and CP-640 carrier cards.

80 mm deep with rear panel and ejection hardware

Interfaces via P3 and P5 CompactPCI connectors

Rear-panel I/O support for SBS 6U CompactPCI carriers

Supports high-speed signal pairs

Specifications

Form Factor

cPCI 6U

TM-683

2 PMC rear panel I/O transition module for 6U CPCI
