ABB AC500 V3 PLC Enhanced connectivity and performance
ABB AC500 V3 PLC Enhanced connectivity and performance

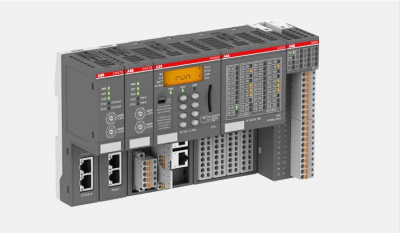

AC500 V3 Extension of the existing AC500 family
Our four new AC500 V3 CPUs extend the existing AC500 V2 CPU family. The V3 CPUs feature state of-the-art technology enhancing connectivity, performance and speed as well as expanding the memory of the AC500 family. For your conve nience the new CPUs are compatible with the existing AC500 range of products.
This means, no matter whether you are looking for new applications to meet new demands such as cyber security requirements or cloud connec tivity or just want to leverage and secure your existing AC500 investment by switching to new state-of-the-art technologies – AC500 V3 will fulfill your requirements.
AC500 V3 New features and higher performance
The flexibility, scalability and footprint of AC500 V2 have been passed on to the new CPU range. Therefore, AC500 continues to be the perfect fit for various applications or will be the natural
successor when you need to introduce new features to existing applications or extend machines and applications to reach for the cloud
The new V3 features provide even more flexibility and freedom when it comes to connectivity and functions supplied onboard without the need of additional devices as couplers or switches. AC500 V3 is ready for the requirements of IoT and digita lization and secure cloud connectivity via new protocols and functions.
Built-in performance • Faster CPUs with more powerful processors • More CPU memory allocated freely • Modern, state-of-the-art components Cyber security • Digitally signed firmware updates protected by hardware security chip • Secure communication protocols: HTTPS, FTPS, OPC UA, MQTT • Encrypted communication with engineering system ABB AbilityTM Automation Builder and boot application State-of-the-art features • OPC UA for easy connectivity to SCADA systems or operator panels • MQTT for lightweight cloud messaging • Onboard HTML5 web server technology Built-in communication • Two Ethernet interfaces for use as switches or independent ports • Onboard Ethernet protocol as Ethernet IP* • CANopen master interface, CAN2A/2B, J1939 • KNX and BACnet • OPC UA server, OPC DA alarm and event • IEC 61850 • IEC 60870-5-104 Telecontrol Reuse & compatibility • Reuse with AC500 platform:- S500/S500-eCo I/O modules – Communication modules • Project conversion and code re-use Improved engineering and debugging • Professional version control with subversion • Application project management • Object-oriented programming • Optimized IEC 61131-3 editors * In preparation • Offline simulation capabilities*
